Stihl 041 AV Specifications information for Stihl chainsaw 041AV. A PDF workshop manual, parts list and a carburetor manual can be found here in the manuals section or by using the website search. A question and answer repair forum for the Stihl 041 AV chainsaw can be located HERE

Stihl 041 Farm Boss Parts Manual

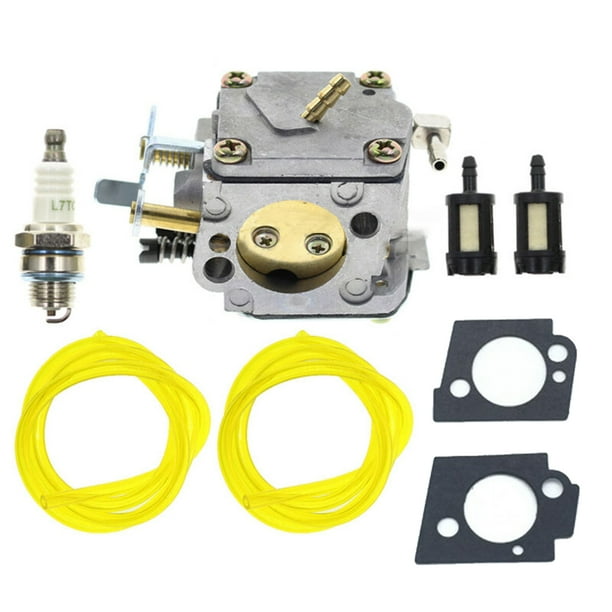

For Stihl 041 041AV Farm Boss Gas Chainsaw 1110-120-0609 Carburetor Carb Kit. STIHL 041AV FARMBOSS CHAINSAW NAME TAG NEW ( COVER NOT INCLUDED ) - DR83. 041 AV 041AV Stihl Chainsaw Illustrated Parts List Diagram Manual New. Carburetor Tune Up Kit For. Stihl 041 Farm Boss Service Workshop Manual $ 9.72 $ 7.95 Download. Stihl 041 FB Parts List Manual $ 0.00 Download-18%. Stihl 041 AVEQ Workshop Manual. Find operator's manuals, safety manuals, service manuals, and parts lists for chain saws here, including a wide variety of makes and models. Stihl 041 Farm Boss. Portions of this manual may not be applicable to products sold in other countries. If you are in a country other than the U.S. Or purchased your product in a country other than the U.S., please contact your STIHL Distributor or Dealer in that country to obtain the appropriate Instruction Manual.

Stihl 041 AV Specifications Information

Stihl 041 Farm Boss Parts Manual Transmissions

SERIES OR ASSEMBLY NUMBER: 1110
ENGINE DISPLACEMENT: 61ccm 93.72 cu. in.)
CYLINDER BORE: 44mm (1.73 in.)
PISTON STROKE: 40mm (1.57 in.)
CYLINDER TYPE: Aluminum with chrome plated bore
INTAKE METHOD: Piston ported
MANUFACTURER ADVERTISED H.P.: 5.5
WEIGHT: 16 lbs. with 13 in. bar & chain
CLUTCH: Centrifugal
DRIVE TYPE: Direct
CONSTRUCTION: Die cast magnesium
MAGNETO TYPE: Bosch
CARBURETOR:Tillotson HS-29A, B, C, D, HS-77A, B, C, HS-87A, HS-100A, HS-138A, HS-208A
MAJOR REPAIR KIT: RK-21HS for HS-87, HS100RK-23HS for HS-29, HS-77, HS-138, HS208
MINOR REPAIR KIT: DG-3HS/T for HS-87, HS100 DG-5HS/T for HS-29, HS-77, HS-138, HS-208
AIR FILTER SYSTEM: Nylon mesh element
STARTER TYPE:Stihl automatic rewind
OIL PUMP: Automatic
IGNITION TIMING: 0.095 to 0.102 in. before TDC
BREAKER POINT SETTING: 0.35 to 0.40mm (0.014 to 0.016 in.)
SPARK PLUG TYPE: Bosch WSR56F
SPARK PLUG GAP: 0.51mm (0.020 in.)
CRANKSHAFT MAIN BEARINGS: Ball
FUEL OIL RATIO: 40:1 with Stihl oil
RECOMMENDED FUEL OCTANE: Regular
MIX OIL SPECIFICATION: Stihl two-cycle chain saw mix oil
SHORTEST GUIDE BAR SUPPLIED: 33cm (13 in.)
LONGEST GUIDE BAR SUPPLIED: 63cm (25 in.)
